Model:

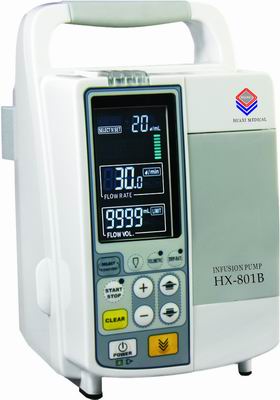

HX-801B

Setting Model

Flow Rate

Pumping type:

Peristaltic finger pump

IV set requirement:

Standard IV set (10,15,20drops/ml),or micro drip IV set  (60drops/ml) with 3.4-4.5mm tubing

Flow rate setting range:

1.0ml/h - 999.9ml/h

Drip rate setting range:

IV set of 10 drops/ml:1.0-166.6drops/min

IV set of 15 drops/ml:1.0-249.9drops/min

IV set of 20 drops/ml:1.0-333.3drops/min

IV set of 60drops/ml:1.0-150.0drops/min

Flow rate increment

0.1ml/h

Flow rate accuracy:

+/- 5% (standard PVC set must first be adjusted)

Drip rate accuracy:

+/- 2%

Volume limit setting range

1-9999 ml

Operational condition:

Temperature:5- 40; Relative humidity: ?90%

Volume infused display :

0-9999 ml

Finger Cassette

Detachable

Purge rate:

600 ml/h

KVO(keep vein open):

1ml/ h

Air detection method :

Ultrasonic, Check range 50~1000ul ,8 levels can be adjusted

Drip detection method:

Infrared  photo-electric beam

Display:

Color LCD with high backlight

Occlusion pressure :

Special prssure sensor,40kPa-140kPa ,8 levels occlusion sensitivity

Alarms:

Infusion Monitoring:

Air in tube,door open,occlusion, pause,infusion complete,empty,

abnormal drips,leakage,tube slope etc.

Diagnosis malfunctions:

Low battery,damage battery,abnormal drip detector,abnormal peristaltic finger pump,reversal of motor,abonormity of ultrasonic sensor,abnormal of motor,abnormal of alarm sound,pause of the power supply

Keyboard

PET Film keyboard

Door Buckle

Double-buckle

Adjustment

Automatical, manual( Optional)

Power source:

100V-240V , 50Hz/60Hz

Inner Battery:

Rechargeable Ni- hydrogen battery, DC12V , 2000mAh

Discharge Time:

> 4 hours



Power consumption:

<25VA with power supply; <5W with battery supply

Weight:

2.1kg

Classification:

Class II; Internal power supply; type CF; Portable ; IPX4

Dimensions:

151mm*150mm*235mm

User range:

Venous infusion,Vascular expansion solution,Anticancer drugs,Accelerative procreate drugs,Nutrient liquid and all of liquid medicine, mini infusions and rapid infusions.
